PTFE Band Sealer Belt for Continuous Heat Sealing Machines
PTFE band sealer belt is a heat resistant non-stick belt used on continuous heat sealing machines for packaging lines. Custom length, width and joint options are available for equipment replacement and OEM procurement.
Product overview
Built around repeatable process performance
PTFE band sealer belt is a heat resistant non-stick belt used on continuous heat sealing machines for packaging lines. Custom length, width and joint options are available for equipment replacement and OEM procurement.
Procurement data
Technical specifications
Final specifications are confirmed against operating conditions and order requirements.
| Product Name | PTFE Band Sealer Belt |
|---|---|
| Material | PTFE coated fiberglass fabric with heat resistant joint material depending on belt design |
| Surface | PTFE coated non-stick surface |
| Reinforcement | PTFE coated fiberglass fabric with heat resistant joint material depending on belt design |
| Temperature Range | Up to 260°C depending on PTFE coating, belt structure and machine conditions |
| Thickness Options | 0.13mm, 0.18mm, 0.25mm, 0.35mm or custom thickness depending on machine requirements |

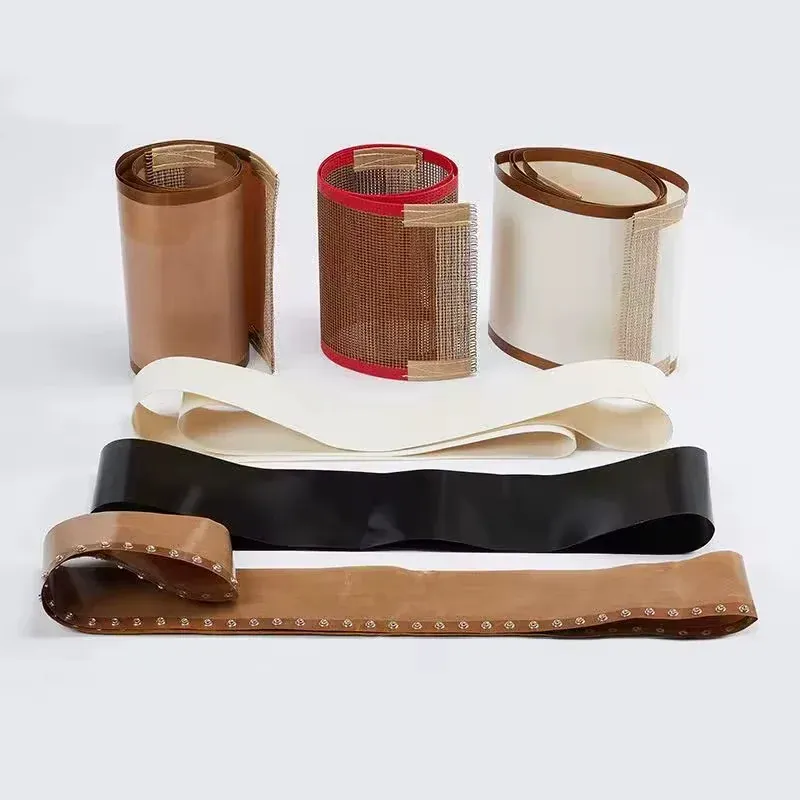

| Size Options | Custom width and endless belt length available; common widths include 10mm, 15mm, 20mm, 25mm and 30mm |
| Color Options | Brown, black or custom color depending on PTFE fabric grade |
| Edge Type | Cut edge, finished edge or custom edge processing by specification |
| Shape Options | Endless belt, open belt, roll material, cut-to-size strip, replacement belt set |
| Food Contact | Material suitability and supporting documents depend on the selected grade, intended use and destination-market requirements. |
| Non-Stick Performance | PTFE coated non-stick surface |
| Air Permeability | Application dependent |
| Custom Logo | Custom label, logo or OEM packaging available subject to order requirements |
| Packaging Options | Bulk packing, individual packing, private label and OEM packaging available by specification |
| MOQ | MOQ depends on belt width, length, thickness, joint type and customization requirements |
| Sample Availability | Standard or custom samples can be discussed before bulk production. |
| Lead Time | Usually 7–15 days after specification confirmation, depending on belt size, joint design and order quantity |

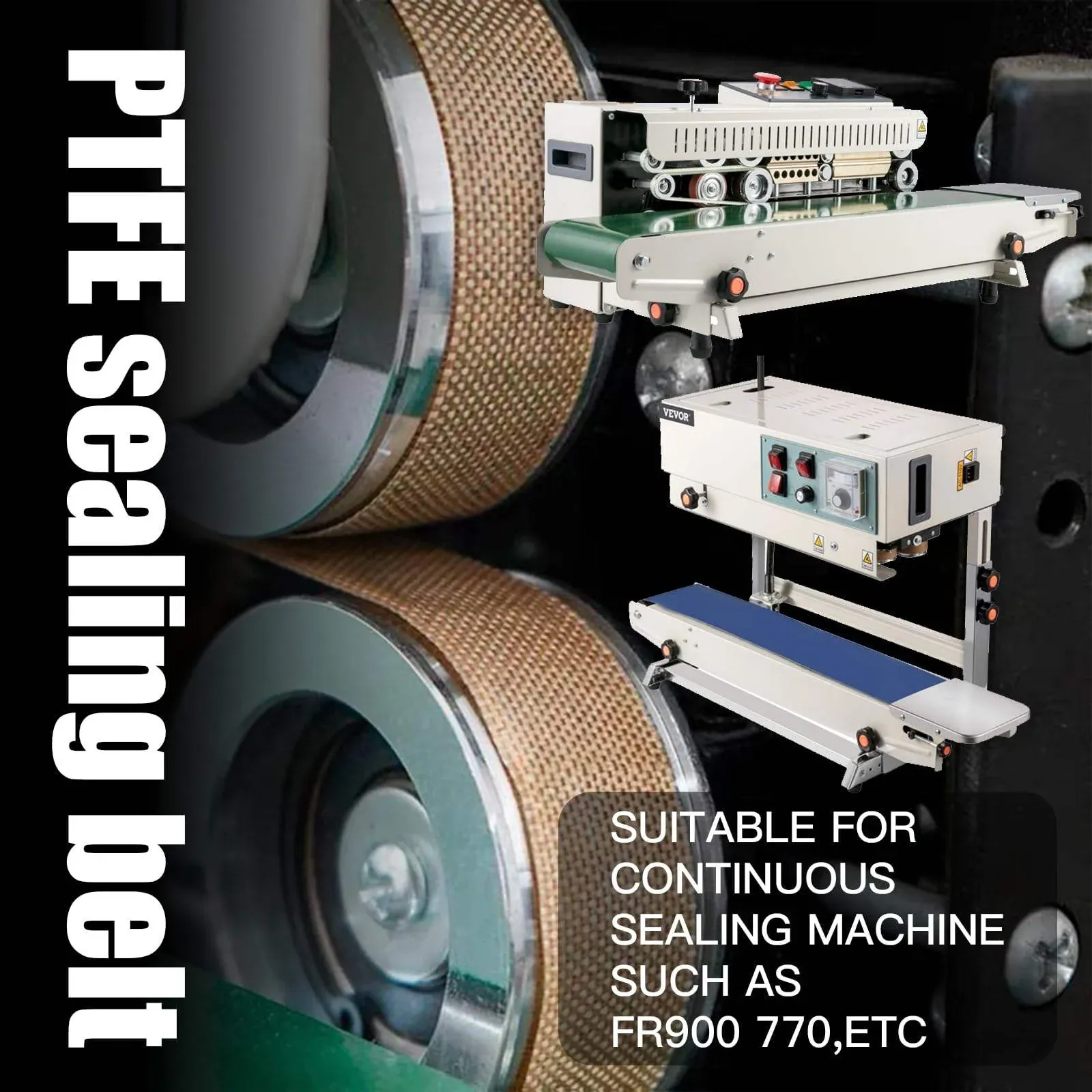

| Applications | Continuous band sealers, heat sealing machines, bag sealing lines, food packaging equipment, pouch sealing, film sealing and industrial packaging machinery |
End-use fit
Applications
Typical purchasing use cases for this product family.
- Continuous band sealers
- heat sealing machines
- bag sealing lines
- food packaging equipment
- pouch sealing
- film sealing and industrial packaging machinery
Order documentation
Compliance & documents
Document availability depends on the selected material grade, intended use and destination-market requirements.
- Compliance documents can be provided according to order requirements
- Test reports available on request and subject to the selected material grade
- Material data sheet available on request
- Product photos and specifications can be provided before order confirmation
- Export packing and documentation support available for bulk orders
Commercial supply
Packaging & bulk orders
Packaging is configured around protection, labeling, handling and export shipment needs.
- Bulk packing, individual packing, private label and OEM packaging available by specification
- Bulk packaging and individual packaging available according to the order
- OEM label, private label and color box options can be discussed
- Export carton packing configured for shipment requirements
- Trial orders and bulk production orders are supported
From brief to shipment
Sample & production process
A clear four-step path for custom and bulk requirements.
- 1
Send requirements
Share product size, thickness, quantity and operating requirements.
- 2
Confirm specification
Confirm material, color, packaging and quotation details.
- 3
Approve sample
Arrange a sample or pre-production confirmation when required.
- 4
Bulk production
Start production, inspection and export packing after approval.
Purchasing questions
Frequently asked questions
Answers for sampling, customization, documentation and production planning.
Can you customize the size of PTFE band sealer belts?
Yes. Belt width, endless length, thickness and joint type can be customized according to your sealing machine model or sample belt.
What information should I provide for a quotation?
Please provide belt width, total endless length, thickness, quantity, machine application, operating temperature and any joint or edge reinforcement requirements.
Can you make replacement belts based on a sample?
Yes. A sample belt, drawing or clear measurement details can help confirm the correct size, joint style and material structure before production.
Are these belts suitable for food packaging machines?
They are commonly used in packaging equipment, but food contact suitability depends on the material grade and application. Please confirm requirements before ordering.
