Protein-rich product sticking
Jerky, liver and meat treats can adhere to bare metal racks during the drying cycle.
Application solution
Silicone-Coated PET Mesh for Pet Food and Meat Treat Drying
Custom flexible mesh liners for long-cycle drying of jerky, meat treats, liver and pet snacks.
Process context
Application Overview
Silicone-coated PET mesh is the correct material family for pet-food drying trays that need flexible support, airflow, reusable silicone contact surfaces and large custom dimensions. Industrial formats, including 640 × 920 mm reference trays, are available for specification review.
- Industry
- Pet food manufacturing
- Application Type
- Pet food and meat treat drying
- Category
- Applications
Buyer pain points
Challenges in This Application
Long drying cycles
Extended low-temperature cycles increase the importance of release, cleaning and repeat-use evaluation.
Small-piece support
The mesh opening must balance support for smaller pieces with the needed airflow.
Industrial tray variation
Large tray dimensions, corners and edge clearances vary by drying equipment.
Recommended material system
Our Solution
Use custom silicone-coated PET mesh with an opening sized for the treat dimensions and airflow target. Confirm large-tray fit, release and cleaning through samples before volume production.
Application references

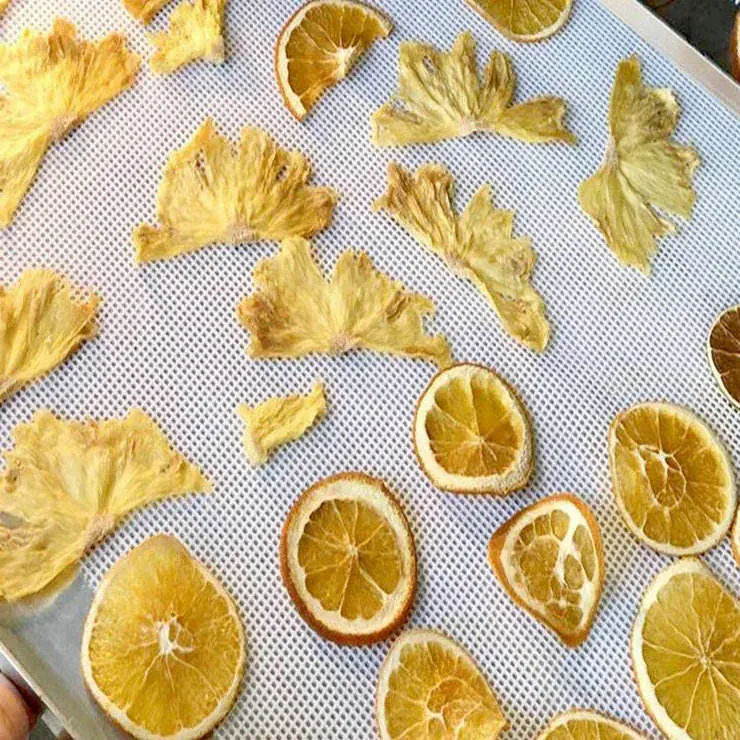

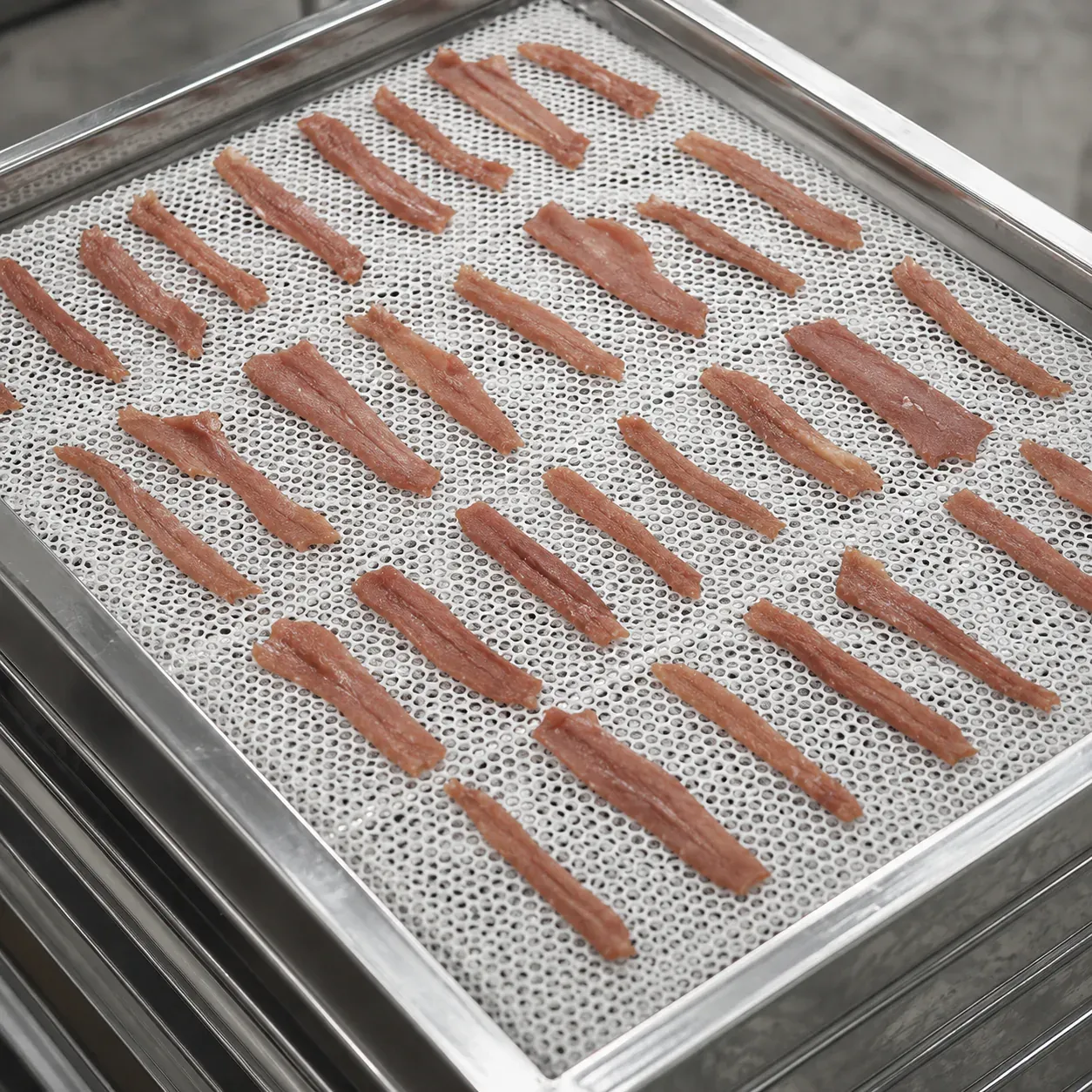

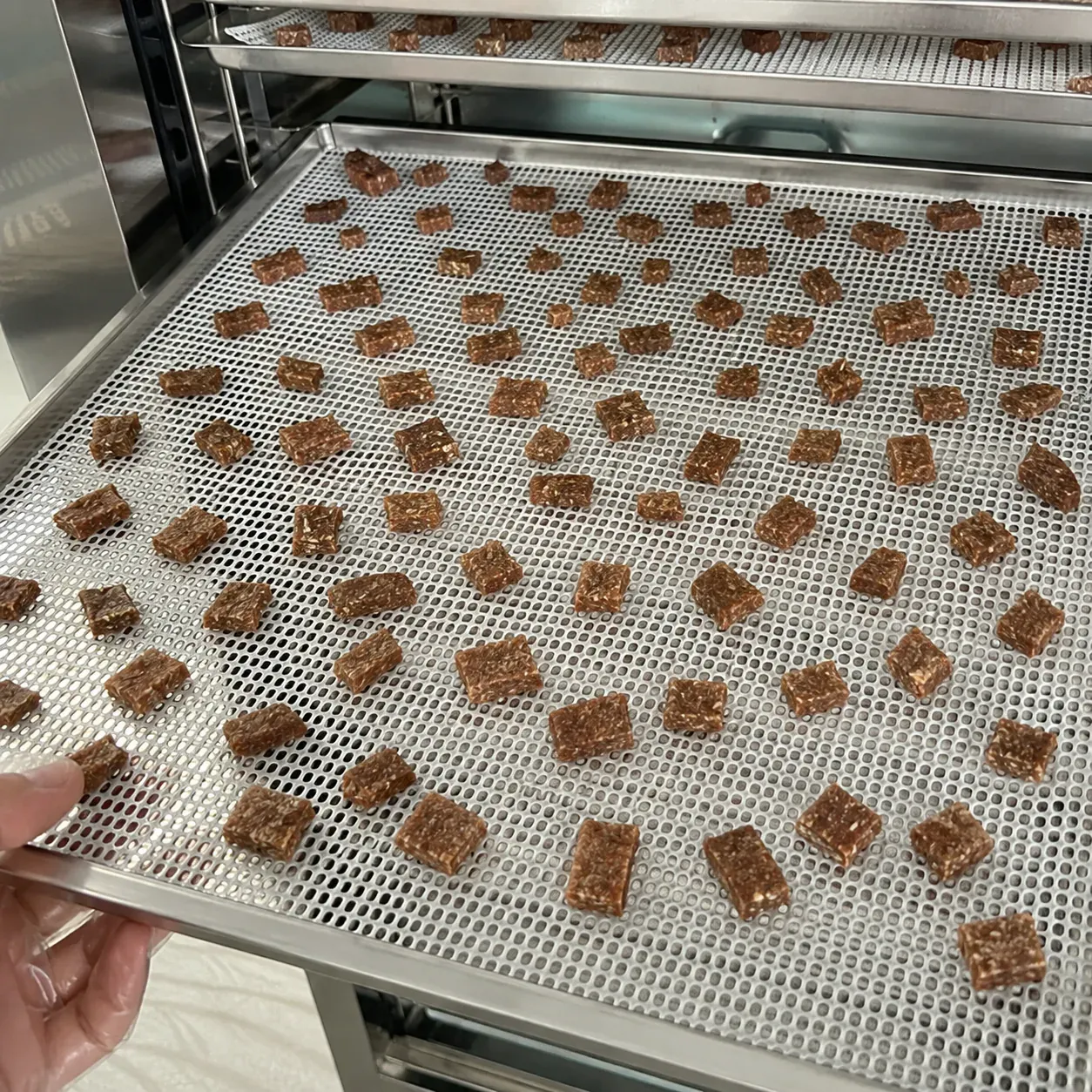

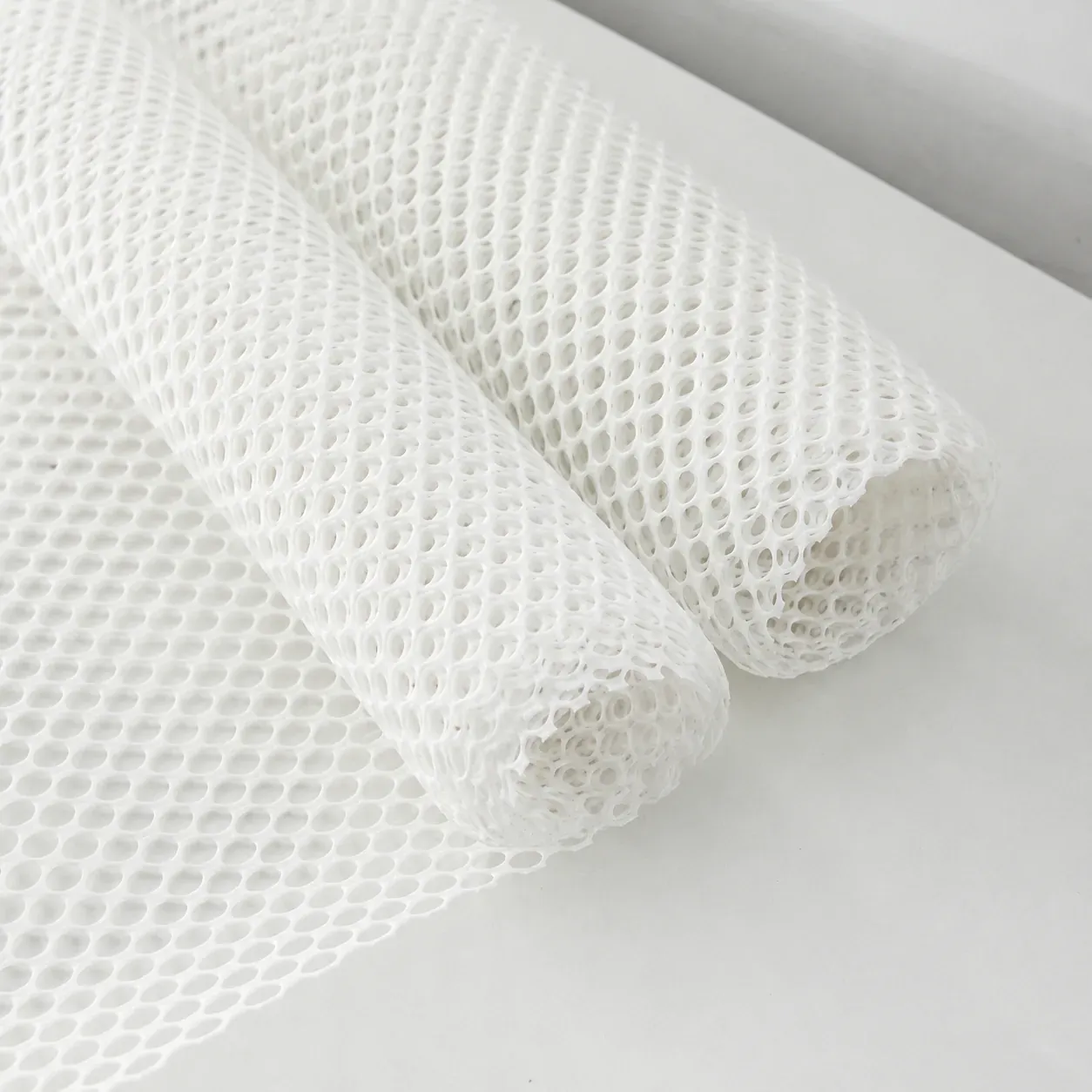

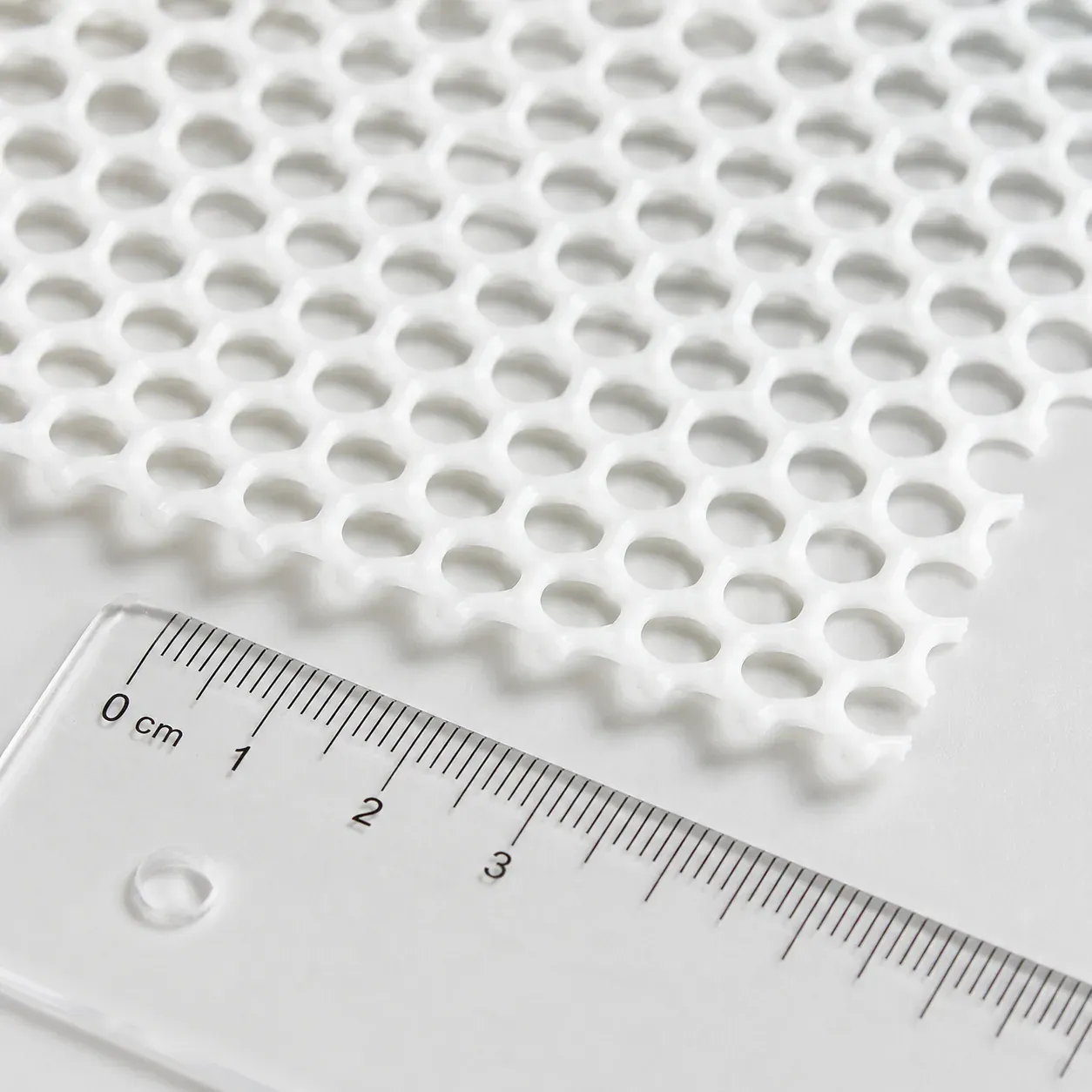

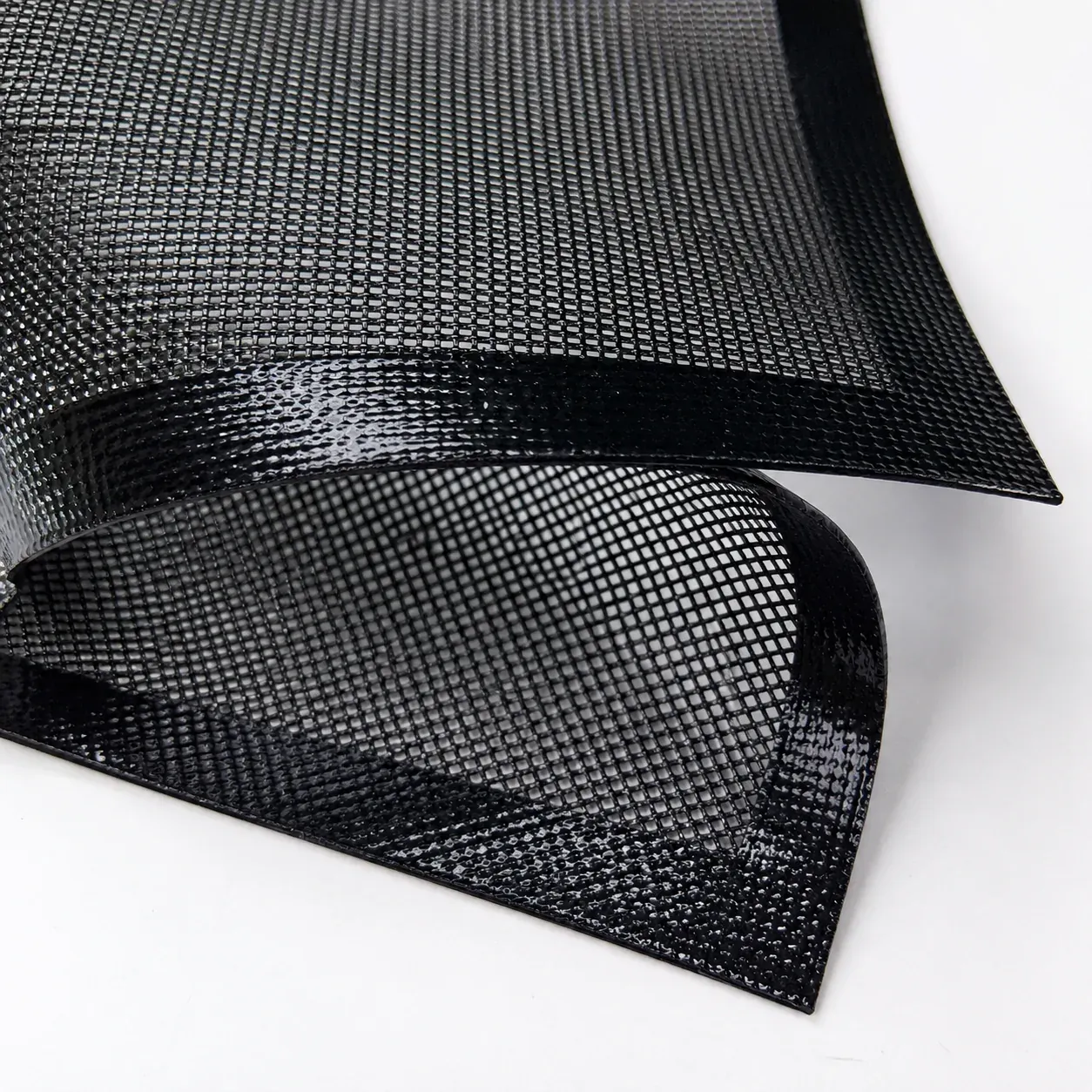

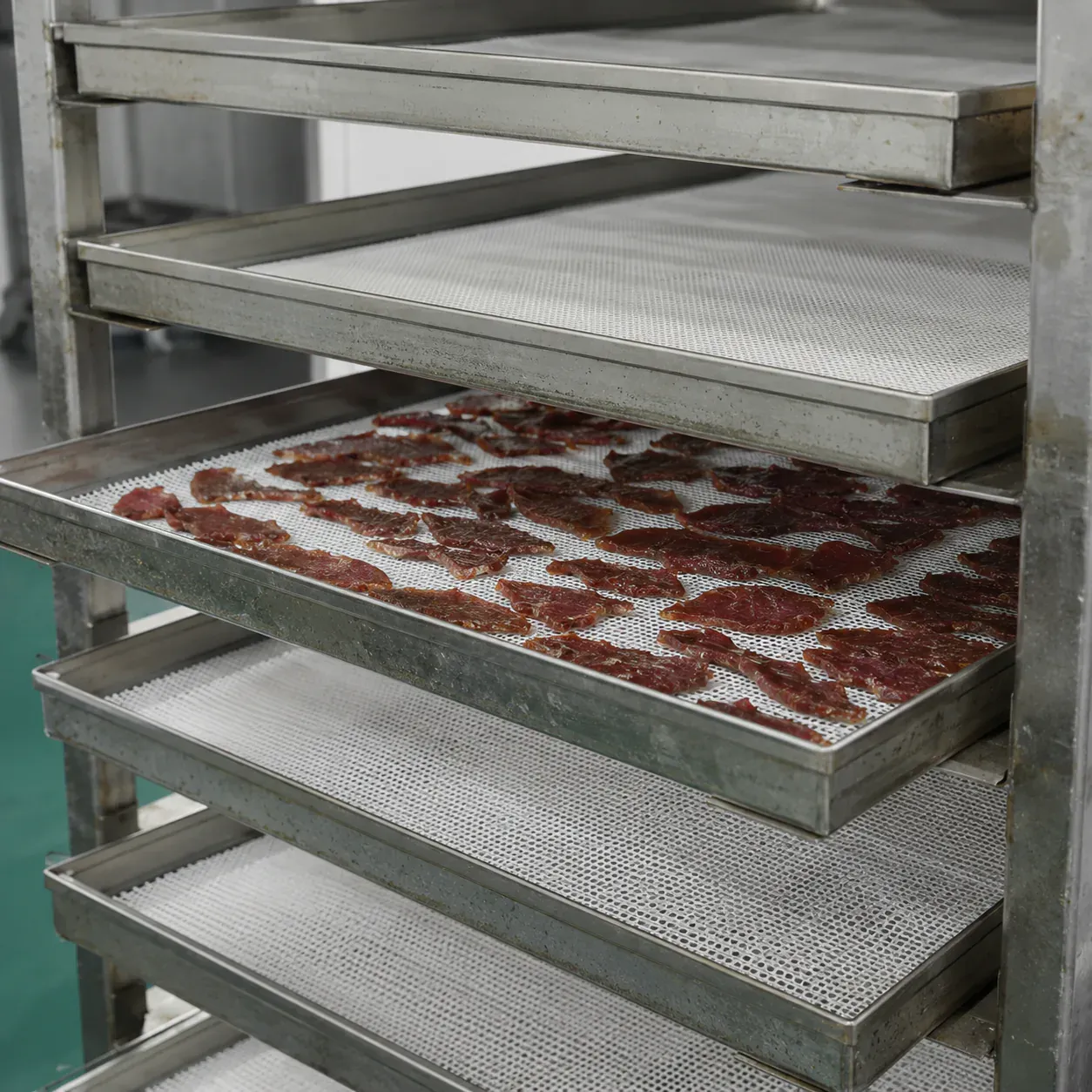

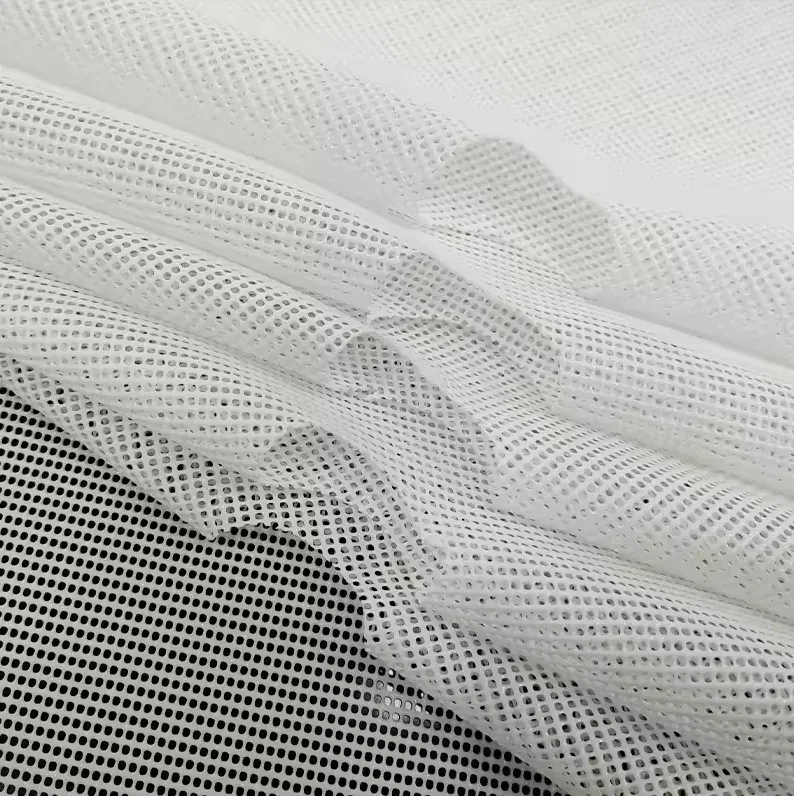

Application Gallery
Material selection
Material Options
| Material | Surface | Typical use |
|---|---|---|
| Silicone-Coated PET Mesh | Open reusable mesh | Pet-food and meat-treat drying trays |
| Fully Encapsulated Silicone Fiberglass Mat | Continuous non-stick surface | Products needing more support |
| PTFE-Coated Fiberglass Mesh | Open mesh | Defined process-specific drying conditions |
Commercial advantages
Why Choose Our Solution
Reduced rack sticking
Helps provide a reusable release surface for protein-rich treats.
Open airflow
Supports airflow where the actual product and drying profile are suitable.
Custom industrial sizes
Specify large tray dimensions, corners and edge treatment for the equipment.
Easier tray handling
A matched removable liner can simplify loading and cleaning routines.
Operating environment
Production Conditions
- Process
- Low-temperature drying that can run for 18 hours or longer
- Variables
- Product fat level, temperature, airflow, loading and wash routine
- Tray size
- Large industrial formats can be reviewed, including 640 × 920 mm reference trays
- Validation
- Test actual treats through the complete drying and cleaning cycle
Procurement comparison
Pet Food Drying Liner Selection
| Consideration | Why it matters | Information to provide |
|---|---|---|
| Mesh opening | Balances small-piece support and airflow | Treat dimensions and photos |
| Drying cycle | Affects material selection and performance | Temperature, duration and loading |
| Tray fit | Supports stable operation | Usable inside dimensions and corner details |
Procurement guidance
How To Select
Measure the industrial tray
Provide usable inside dimensions, corner details and required edge clearance.
Describe the treat
Share product size, fat and protein characteristics, plus representative photos.
Confirm the cycle
Drying temperature, duration, airflow and wash routine guide the sample specification.
OEM / ODM manufacturing
PET Mesh Customization & MOQ
Existing silicone-coated PET mesh is cut directly without additional edge sealing. MOQ rises only when the conversion, branding or raw material changes.
Discuss a Custom RequirementQuality support
Quality & Compliance
Test samples with actual meat treats over the intended drying cycle, including loading, release, cleaning and repeat-use evaluation.
- Food-contact documentation is assessed against the selected silicone-coated PET mesh and target market
- The buyer validates the finished liner in the intended pet-food process
Sourcing guidance
Buying Considerations
Quote inputsProvide tray size, product type, drying temperature and duration, product dimensions, cleaning procedure, quantity and target market.
Sample-to-scale validationTest samples with actual treats for loading, release, cleaning and repeat-use before volume production.
- Custom MOQ
- 10 pcs for direct cut-to-size formats; 20–50 pcs for conversion; 100–500 pcs for branding; 500 linear meters for material-level customization.
- Lead Time
- Production timing is confirmed after sample approval, with lead time depending on size, finishing and order quantity.
- Packaging
- Bulk cartons, stacked flat packs, labeled tray sets and OEM or private-label packaging subject to specification.
Buyer questions
Frequently Asked Questions
Can you make a 640 × 920 mm silicone-coated PET mesh pet-food drying liner?
Yes. Provide the usable tray dimensions, corner details and required edge clearance for a large-format proposal.
Is silicone-coated PET mesh suitable for 18-hour drying cycles?
Yes, when the selected construction matches the low-temperature drying profile. Validate the actual product, temperature, duration and cleaning routine through a representative sample cycle.
How should I choose mesh density for small meat pieces?
Select it from the product size, support requirement and airflow target, then confirm the choice with a sample trial.
What should I include in a pet-food liner inquiry?
Provide tray dimensions, treat size and composition, drying profile, cleaning procedure, quantity and target-market requirements.
Start your RFQ
Looking for a Custom Solution?
Share dimensions, process conditions, quantity and any drawing or packaging requirement. Our team will recommend an appropriate material starting point.
