Food sticking to racks
Fruit, meat and ingredients can adhere to bare metal or mesh trays during long drying cycles.
Application solution
Silicone-Coated PET Mesh Mats for Commercial Dehydrator Trays
Flexible, reusable open-mesh liners for steaming, drainage and low-to-medium-temperature food drying.
Process context
Application Overview
Silicone-coated PET mesh is the correct material family for commercial dehydrator trays that need flexible food support, non-stick silicone contact surfaces, airflow and moisture transfer during extended drying cycles.
- Industry
- Food processing
- Application Type
- Dehydrator tray lining
- Category
- Applications
Buyer pain points
Challenges in This Application
Small-piece support
The mesh opening needs to suit the product size while retaining the required airflow.
Cleaning time
Residue on fixed tray racks can increase washing and turnaround work.
Variable tray sizes
Dehydrator tray dimensions, corners and rail clearances vary by equipment.
Recommended material system
Our Solution
Use custom-cut silicone-coated PET mesh for food drying and select the mesh opening around the product size and airflow target. Use solid silicone only where continuous support is required; use PTFE mesh only for a defined process requirement.
Application references

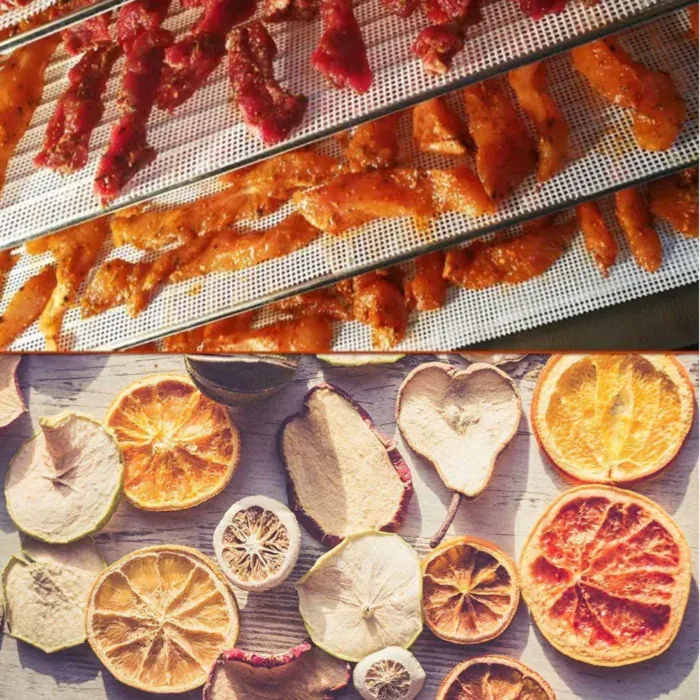

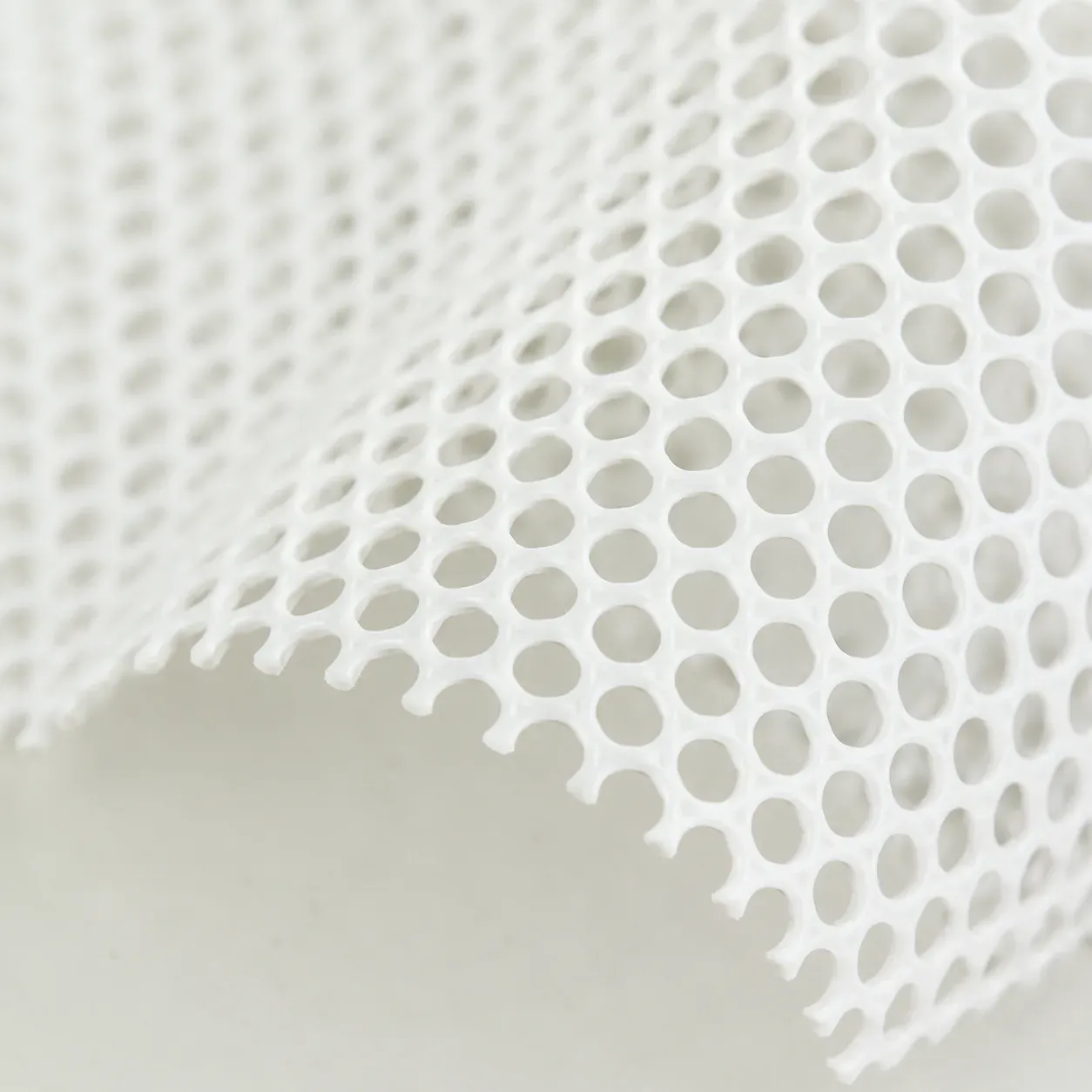

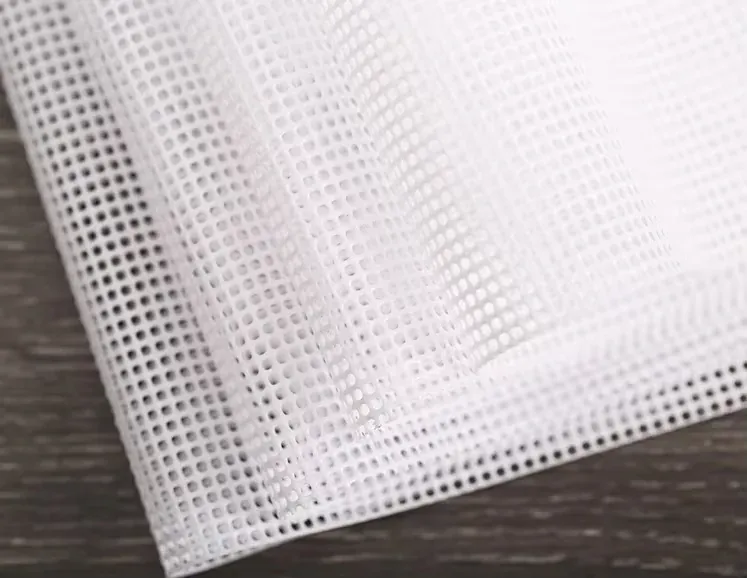

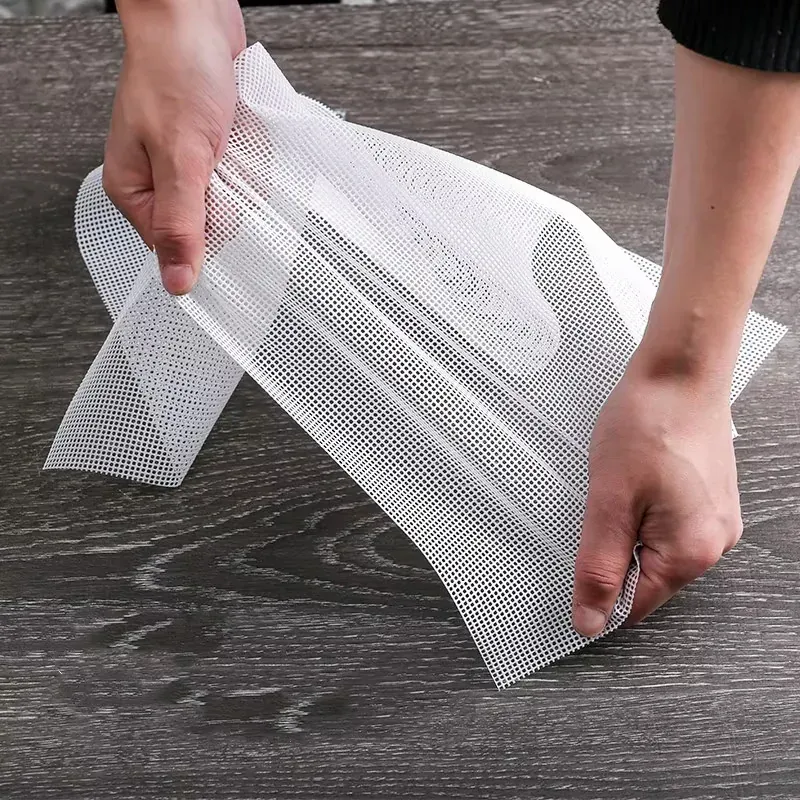

Application Gallery
Material selection
Material Options
| Material | Airflow | Typical use |
|---|---|---|
| Silicone-Coated PET Mesh | Open | Fruit, vegetables, meat and ingredients |
| Fully Encapsulated Silicone Fiberglass Mat | Limited through-sheet airflow | Wet or small items needing continuous support |
| PTFE-Coated Fiberglass Mesh | Open | Defined process-specific drying conditions |
Commercial advantages
Why Choose Our Solution
Reduced rack sticking
Helps provide a reusable non-stick surface over the drying tray.
Airflow-friendly structure
Open mesh supports the drying process where the product and profile are suitable.
Custom tray fit
Specify tray dimensions, corners and clearance for stable placement.
Easier cleaning
A removable liner can simplify rack handling and wash routines.
Operating environment
Production Conditions
- Process
- Low-temperature drying over extended cycles
- Variables
- Product acidity, oil, moisture, loading and wash conditions
- Temperature
- Often around 60–90 °C; confirm the actual operating range
- Validation
- Test with the intended tray, food, cycle duration and cleaning routine
Procurement comparison
Dehydrator Liner Material Options
| Option | Airflow | Typical use | Selection note |
|---|---|---|---|
| Silicone-Coated PET Mesh | Open | Fruit, vegetables, meat and ingredients | Primary material for flexible food-dehydrator liners; select the mesh opening through sample testing |
| Fully Encapsulated Silicone Fiberglass Mat | Limited through-sheet airflow | Wet or small items needing a continuous surface | Confirm drying behavior |
| PTFE-Coated Fiberglass Mesh | Open | Defined process-specific drying conditions | Confirm material and food-contact requirements |
Procurement guidance
How To Select
Measure the tray
Provide the inside dimensions, corner details and a tray photo or drawing.
Size the food
Product particle size and support needs guide mesh-opening selection.
Confirm the drying cycle
Share temperature, duration, food type and wash method before sampling.
OEM / ODM manufacturing
Customization Options & MOQ
Existing silicone-coated PET mesh is cut directly without additional edge sealing. MOQ changes only when the conversion, branding or raw material changes.
Discuss a Custom RequirementQuality support
Quality & Compliance
Test samples on the actual dehydrator with the intended product, load level, temperature, cycle duration, release target and wash routine.
- Food-contact documentation is assessed against the selected silicone-coated PET mesh and intended market
- The buyer confirms the applicable regulatory and process requirements
Sourcing guidance
Buying Considerations
Quote inputsProvide tray size, product particle size, drying temperature, cycle duration, cleaning method and quantity.
Sample testingEvaluate fit, release, airflow and washing in the actual dehydrator before volume production.
- Custom MOQ
- 10 pcs for direct cut-to-size formats; 20–50 pcs for conversion; 100–500 pcs for branding; 500 linear meters for material-level customization.
- Lead Time
- Timing is confirmed after sample and specification approval and varies with custom processing and quantity.
- Packaging
- Flat-packed bulk cartons, individual sleeves, labeled sets and OEM packaging subject to agreement.
Buyer questions
Frequently Asked Questions
Can silicone-coated PET mesh liners be made for a custom dehydrator tray?
Yes. Send the usable tray dimensions, corner details and a photo or drawing for a tray-matched proposal.
Are they suitable for long low-temperature drying?
Yes. Silicone-coated PET mesh is specified for low-to-medium-temperature drying; confirm the final construction against the actual temperature, duration, product and wash routine through sample testing.
How do I choose the mesh opening?
Select the mesh opening from the food size, required support and airflow target, then validate it with the actual product.
Can the liners be cleaned and reused?
Yes. Confirm the cleaning chemicals, temperature and expected repeat-use cycles during sampling so the final construction matches the wash routine.
Selection support
Guides for this application
Solid vs Mesh Silicone Mats: Which Structure Fits Your Process?
Balance product support, retention and airflow when choosing a continuous or perforated silicone surface.
Start your RFQ
Looking for a Custom Solution?
Share dimensions, process conditions, quantity and any drawing or packaging requirement. Our team will recommend an appropriate material starting point.
