Fiberglass open mesh / OEM & private label
Your tray size.
Your border, print and pack.
SIFMAT supplies silicone-coated fiberglass mesh baking mats with a sealed silicone perimeter. Build your specification around the tray, dough and brand—from a simple size change to printed baking guides and retail sets.
01 / Order quantities
Simple custom sizes start from 100 pieces per size using existing material and colors. Border changes, new mesh, printing and packaging carry separate minimums. These are starting quantities for order planning; the quotation confirms the MOQ for each finished specification.
Product scope: silicone-coated fiberglass open mesh with a sealed perimeter for baking. See separate options for solid silicone baking mats and polyester mesh steaming and dehydrator liners.
Specify the finished mat dimensions, including the silicone perimeter. Existing material and a simple outline keep the starting quantity low.
| Custom option | Starting MOQ | What to specify |
|---|---|---|
| Standard or custom rectangular size | 100 pcs / size | Existing mesh, thickness and color; dimensions include the sealed border. |
| Round, square or simple corner changes | 100 pcs / shape | Supply the diameter, corner radius or cut-corner dimensions. |
| Existing thickness or standard border color | 100 pcs / specification | Choose from the available material and color options. |
| Complex custom outline | 300 pcs / design | Drawing review determines the edge construction and tooling. |
| New thickness | 300 pcs / thickness | Define mesh-body and border thickness separately. Special constructions require a separate quote. |
| Custom border width | 300 pcs / specification | State the width on each edge and the usable mesh area. |
A new mesh construction changes the material batch. Color matching and printing are counted by specification, color or artwork.
| Custom option | Starting MOQ | What to specify |
|---|---|---|
| Pantone border color | 500 pcs / color | Approve a physical color sample for the silicone border. |
| Custom mesh color | 500 pcs / color | Raw-material minimums also apply to a new mesh color. |
| Custom mesh opening | 500 pcs / specification | Specify the finished clear opening. A new weave is subject to the mesh-roll minimum. |
| Custom mesh density or open area | 500 pcs / specification | Agree the weave, coating and finished opening together; material minimums apply. |
| Logo or care-mark printing | 500 pcs / artwork | Provide vector artwork, print position and colors. Setup charges are quoted separately. |
| Printed baking guides or patterns | 500 pcs / artwork | Define guide size, spacing and line width. Approve the printed sample before production. |
Packaging minimums count bags, cards, sleeves or boxes. Set quantities count complete packs, with the mat quantity checked separately.
| Custom option | Starting MOQ | What to specify |
|---|---|---|
| Basic individual OPP bag | 100 pcs | Clear flat or rolled bags; confirm the packing method. |
| Custom sticker or label | 500 labels / design | Include the SKU, barcode, product name and required label text. |
| OPP bag with printed card | 500 packs / design | One approved card design and agreed bag size. |
| Custom paper sleeve | 1,000 sleeves / design | Confirm the sleeve dimensions and mat count per pack. |
| Custom printed color box | 3,000 boxes / artwork | Box size, print artwork and pack count are approved together. |
| Blister packaging | 3,000 packs / design | Tooling, printed backing and assembly are quoted separately. |
| Standard multi-pack | 500 sets | Specify the quantity of each mat size inside one set. |
| Custom retail-box multi-pack | 3,000 sets | Each set uses one retail box; component mat minimums also apply. |
02 / Size & construction

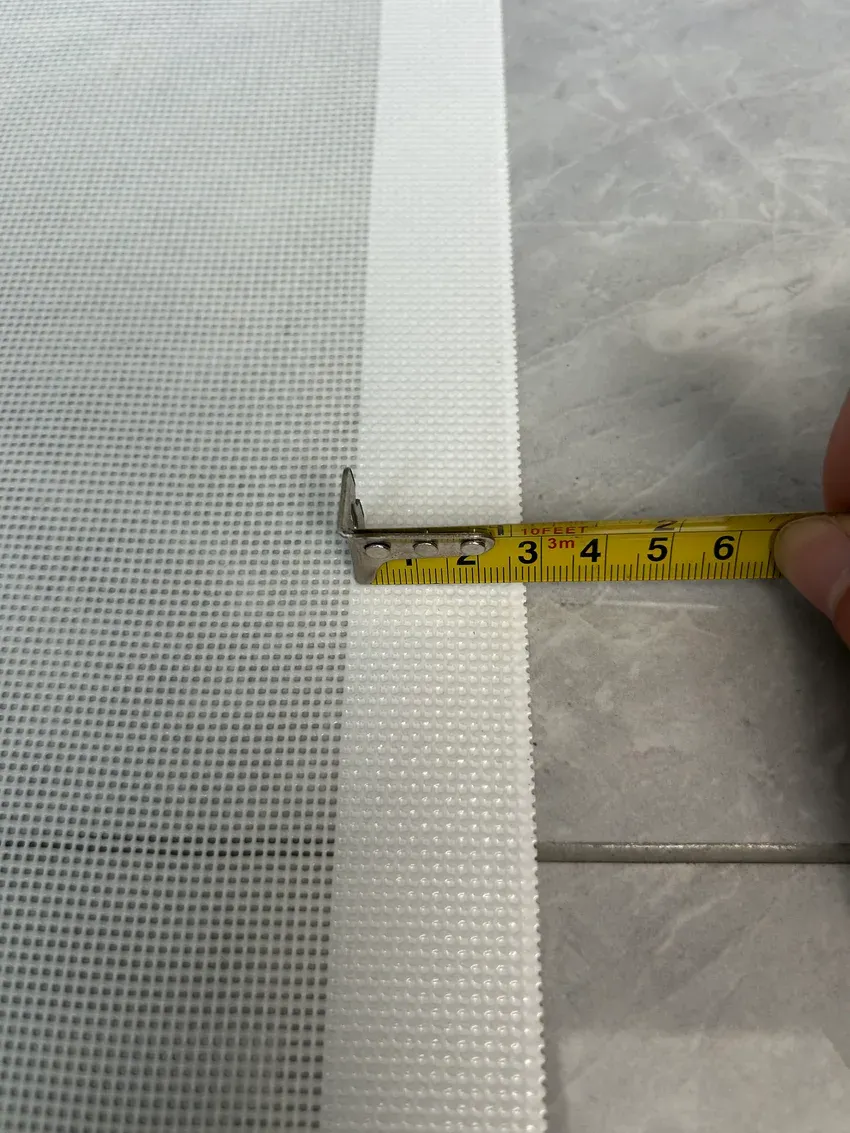

Measure the usable inside base of the tray. Give the finished mat length and width, the corner detail and the clearance you need around the edge. Include the silicone border in the overall dimensions.
A wider border reduces the open-mesh area. For example, a 400 × 600 mm mat with a 20 mm border on every side has a nominal 360 × 560 mm mesh area before allowing for corners.
Order the final outline from us. Cutting a finished fiberglass mat can open the sealed perimeter and expose the reinforcement.
03 / Brand details
Place a logo on the border or specify baking guides across the mesh. For eclairs, cookies or macarons, provide the guide dimensions, spacing, row count and distance from the mat edge.

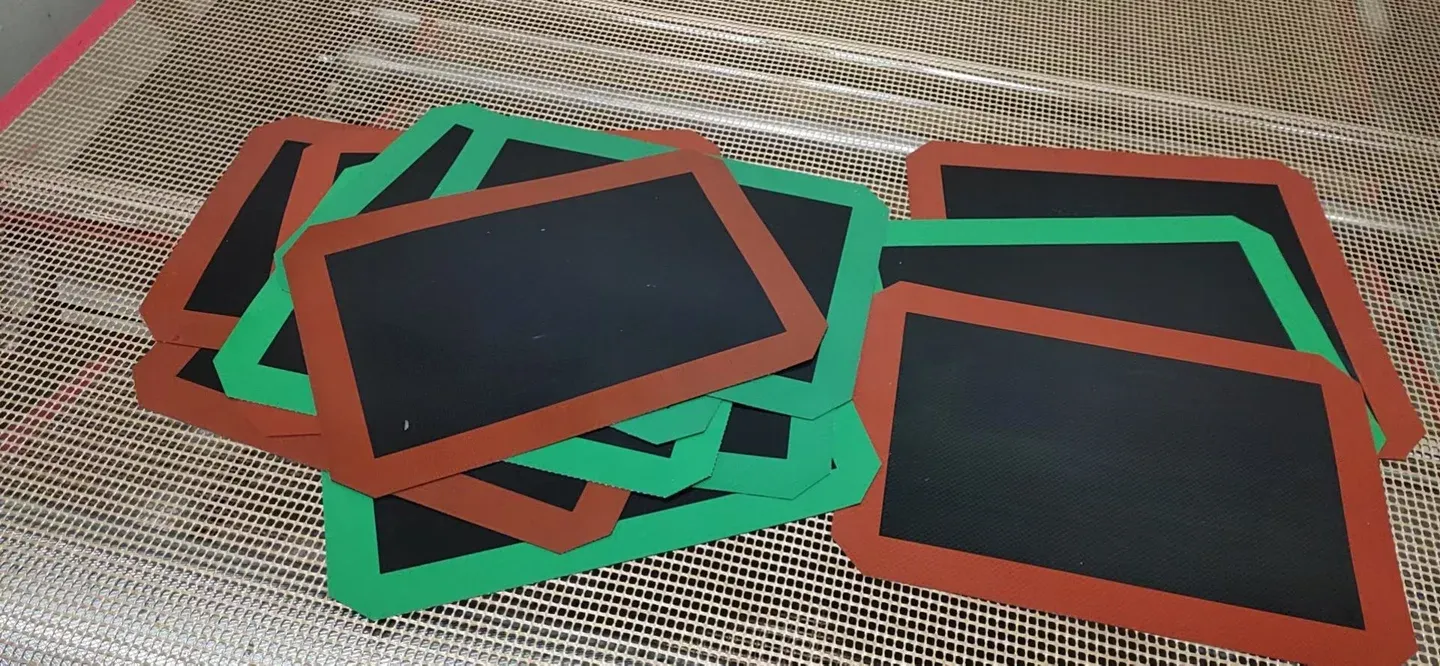

Send vector artwork at the finished print size. Define the mesh color and border color separately, using a Pantone reference for a new color match. Approve the physical sample for color, print position and line clarity.
A printed guide marks a position; it does not create a molded cavity. If the product needs walls or a formed pocket, include that structure in the drawing for a separate tooling review.
04 / Build the order
Use these examples to separate mat quantities from packaging quantities. Each assumes an existing mesh construction; new colors or artwork add their own minimums.
200 mats total
100 mats at 300 × 400 mm and 100 mats at 400 × 600 mm, with an existing border color and plain individual bags.
Each size meets the 100-piece starting minimum. The sealed edge and corner details are included in the drawing.
500 mats + 500 card packs
One existing mesh, one standard border color, one logo artwork and an OPP bag with a printed card for each mat.
The 500-piece printing run and 500-pack card minimum set the starting quantity for this configuration.
3,000 sets / 6,000 mats
Two same-size mats in each printed retail box, with one box artwork across the order.
Plan 3,000 boxes and 6,000 mats. If the set mixes sizes or colors, list the component quantities separately.
05 / Sample approval
The approved drawing, material specification, artwork and packing instructions define the order. Keep them together under one project reference for repeat supply.
Include the tray, finished dimensions, food type, operating cycle, order quantity, destination and delivery date.
Review MOQ per variant, sample cost, print setup, tooling, packaging and production schedule.
Check tray fit, border finish, dough release and print layout through the intended baking and cleaning cycle.
Sign off dimensions, mesh, color, artwork and packing. Agree the required product documents for the destination market.
Buyer questions
Start your specification
Tell us the finished dimensions, mesh requirement, border width and color, print design and pack format. Include a drawing reference and the quantity for each variant.
For an initial quote, start with: mat size × quantity, border color, logo requirement and packaging. Add your target delivery date and destination.
